NEST membrane cell-culture inserts and Transwell-format plates for co-culture, transport, migration and permeability studies.
Know who made it. See the evidence. Buy through one marketplace.

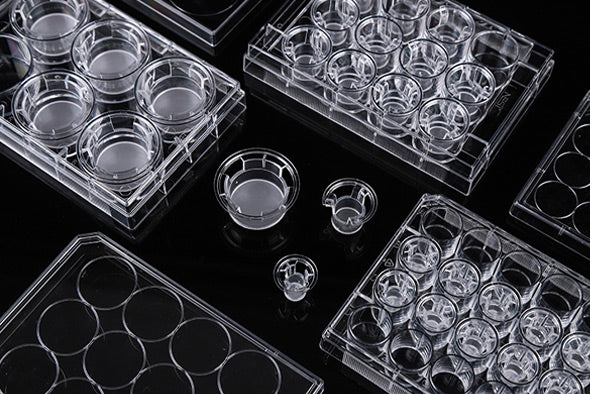

Cell Culture Inserts, Non-treated, PET Membrane, Non-TC, 3 µm from NEST Scientific for research and laboratory use.
| Cat. No. | Size and configuration | Selling unit |
|---|---|---|
| 724031 | PET · 12 Nested Inserts + 12 Well Plate · Non-Treated · 3 µm · Individually Packaged in Peelable Tyvek Film & Blister | Case of 48 |
| 725031 | PET · 12 Nested Inserts + 24 Well Plate · Non-Treated · 3 µm · Individually Packaged in Peelable Tyvek Film & Blister | Case of 48 |
| 723031 | PET · 6 Nested Inserts + 6 Well Plate · Non-Treated · 3 µm · Individually Packaged in Peelable Tyvek Film & Blister | Case of 24 |
Select the required configuration and selling unit before adding the product to the basket.
NEST Cat. No.: 724031
Selling unit: Case of 48
Cell Culture Inserts, PET, 12 Nested Inserts + 12 Well Plate, Non-Treated, 3 µm, Individually Packaged in Peelable Tyvek Film & Blister (Cat. No. 724031)
| Specification | Listed detail |
|---|---|
| Detail | 12 Well Non-Treated - Cell Culture Plates (712011) |
| Detail | Inserts have translucent, 3.0 µm pore, PET membrane |
| Detail | 12 Inserts included with each plate |
| Packaging | 12 plates per pack, 48 plates total per case |
| Packaging | Individually Wrapped - 1 per blister pack - 48 plates and 576 inserts per case |
| Detail | Insert Diameter - 12 mm |
| Detail | Plate volume per well - 1.5 mL |
| Detail | Inner volume of insert - 0.5 mL |
| Detail | Growth area of insert membrane - 1.12 cm² |
| Detail | Nominal pore density 2x10⁶ pores per cm² |
Transparent PET membrane provides clear visibility for observation.
| Specification | Listed detail |
|---|---|
| Detail | Create a cell culture environment that closely mimics in vivo conditions |
Inserts allow polarized cells to perform metabolic functions more naturally by allowing nutrient uptake from both the apical and basolateral sides
| Specification | Listed detail |
|---|---|
| Detail | Grow cells in co-culture systems either with direct cell-to-cell interaction or separated without physical contact |
| Detail | Membrane requires staining to be visible |
| Detail | The membrane features a low adsorption rate, minimizing the loss of small molecular proteins and other compounds |
| Detail | Transparent PET inserts provide high optical clarity, enabling clear visualization of cell outlines under phase-contrast microscopy |
| Specification | Listed detail |
|---|---|
| Material | USP grade VI virgin polystyrene |
| Material | USP grade VI virgin PET |
| Detail | Manufactured in cGMP (21 CFR part 820/821) compliant factory |
| Detail | Produced in ISO 13485:2016 and ISO 9001 facility |
| Detail | Molded and packed in ISO 7 cleanroom |
| Detail | E-beam sterilized and lot tested to SAL 10^-6 |
| Detail | Lot tested free of pyrogens USP 85 |
| Detail | Lot tested free of cytotoxins/pyrogens In Vivo USP 88 and In Vitro USP 87 |
| Detail | Lot tested free DNase/RNase and DNA |
| Detail | Lot tested free BSE/TSE |
| Detail | Certified free of animal products |
Cell and tissue culture technologies are increasingly essential in both basic research and applied life sciences. To better replicate in vivo conditions, advanced culture vessels and specialized surface treatments for cell adhesion are continually being developed, particularly for the growth of sensitive or specialized cell lines. Among these innovations, permeable supports with microporous membranes have become a key tool. By allowing molecular exchange at both the apical and basal surfaces, they promote the growth of polarized cells and support secretion and absorption in a way that closely mirrors natural metabolic processes. This creates a more physiologically relevant environment, making permeable supports an effective solution for cultivating complex cell types.
NEST Cat. No.: 725031
Selling unit: Case of 48
Cell Culture Inserts, PET, 12 Nested Inserts + 24 Well Plate, Non-Treated, 3 µm, Individually Packaged in Peelable Tyvek Film & Blister (Cat. No. 725031)
| Specification | Listed detail |
|---|---|
| Detail | 24 Well Non-Treated (702011) |
| Detail | Inserts have translucent, 3.0 µm pore, PET membrane |
| Detail | 12 Inserts included with each plate |
| Packaging | 12 plates per pack, 48 plates total per case |
| Packaging | Individually Wrapped - 1 per blister pack - 48 plates and 576 inserts per case |
| Detail | Insert Diameter - 6.5 mm |
| Detail | Plate volume per well - 0.6 mL |
| Detail | Inner volume of insert - 0.1 mL |
| Detail | Growth area of insert membrane - 0.33 cm² |
| Detail | Nominal pore density 2x10⁶ pores per cm² |
Transparent PET membrane provides clear visibility for observation.
| Specification | Listed detail |
|---|---|
| Detail | Create a cell culture environment that closely mimics in vivo conditions |
Inserts allow polarized cells to perform metabolic functions more naturally by allowing nutrient uptake from both the apical and basolateral sides
| Specification | Listed detail |
|---|---|
| Detail | Grow cells in co-culture systems either with direct cell-to-cell interaction or separated without physical contact |
| Detail | Membrane requires staining to be visible |
| Detail | The membrane features a low adsorption rate, minimizing the loss of small molecular proteins and other compounds |
| Detail | Transparent PET inserts provide high optical clarity, enabling clear visualization of cell outlines under phase-contrast microscopy |
| Specification | Listed detail |
|---|---|
| Material | USP grade VI virgin polystyrene |
| Material | USP grade VI virgin PET |
| Detail | Manufactured in cGMP (21 CFR part 820/821) compliant factory |
| Detail | Produced in ISO 13485:2016 and ISO 9001 facility |
| Detail | Molded and packed in ISO 7 cleanroom |
| Detail | E-beam sterilized and lot tested to SAL 10^-6 |
| Detail | Lot tested free of pyrogens USP 85 |
| Detail | Lot tested free of cytotoxins/pyrogens In Vivo USP 88 and In Vitro USP 87 |
| Detail | Lot tested free DNase/RNase and DNA |
| Detail | Lot tested free BSE/TSE |
| Detail | Certified free of animal products |
Cell and tissue culture technologies are increasingly essential in both basic research and applied life sciences. To better replicate in vivo conditions, advanced culture vessels and specialized surface treatments for cell adhesion are continually being developed, particularly for the growth of sensitive or specialized cell lines. Among these innovations, permeable supports with microporous membranes have become a key tool. By allowing molecular exchange at both the apical and basal surfaces, they promote the growth of polarized cells and support secretion and absorption in a way that closely mirrors natural metabolic processes. This creates a more physiologically relevant environment, making permeable supports an effective solution for cultivating complex cell types.
NEST Cat. No.: 723031
Selling unit: Case of 24
Cell Culture Inserts, PET, 6 Nested Inserts + 6 Well Plate, Non-Treated, 3 µm, Translucent, Individually Packaged in Peelable Tyvek Film & Blister (Cat. No. 723031)
| Specification | Listed detail |
|---|---|
| Detail | 6 Well Non-Treated Cell Culture Plates (703011) |
| Detail | Inserts have 3 µm pore translucent PET membrane |
| Detail | 6 Inserts included with each plate |
| Packaging | 6 plates per pack, 24 plates total per case |
| Packaging | Individually Wrapped - 1 per blister pack - 24 plates and 144 inserts per case |
| Detail | Insert Diameter - 24 mm |
| Detail | Plate volume per well - 2.6 mL |
| Detail | Inner volume of insert - 1.5 mL |
| Detail | Growth area of insert membrane - 4.67 cm² |
| Detail | Nominal pore density 2x10⁶ pores per cm² |
Transparent PET membrane provides clear visibility for observation.
| Specification | Listed detail |
|---|---|
| Detail | Create a cell culture environment that closely mimics in vivo conditions |
Inserts allow polarized cells to perform metabolic functions more naturally by allowing nutrient uptake from both the apical and basolateral sides
| Specification | Listed detail |
|---|---|
| Detail | Grow cells in co-culture systems either with direct cell-to-cell interaction or separated without physical contact |
| Detail | Membrane requires staining to be visible |
| Detail | The membrane features a low adsorption rate, minimizing the loss of small molecular proteins and other compounds |
| Detail | Transparent PET inserts provide high optical clarity, enabling clear visualization of cell outlines under phase-contrast microscopy |
| Specification | Listed detail |
|---|---|
| Material | USP grade VI virgin polystyrene |
| Material | USP grade VI virgin PET |
| Detail | Manufactured in cGMP (21 CFR part 820/821) compliant factory |
| Detail | Produced in ISO 13485:2016 and ISO 9001 facility |
| Detail | Molded and packed in ISO 7 cleanroom |
| Detail | E-beam sterilized and lot tested to SAL 10^-6 |
| Detail | Lot tested free of pyrogens USP 85 |
| Detail | Lot tested free of cytotoxins/pyrogens In Vivo USP 88 and In Vitro USP 87 |
| Detail | Lot tested free DNase/RNase and DNA |
| Detail | Lot tested free BSE/TSE |
| Detail | Certified free of animal products |
Cell and tissue culture technologies are increasingly essential in both basic research and applied life sciences. To better replicate in vivo conditions, advanced culture vessels and specialized surface treatments for cell adhesion are continually being developed, particularly for the growth of sensitive or specialized cell lines. Among these innovations, permeable supports with microporous membranes have become a key tool. By allowing molecular exchange at both the apical and basal surfaces, they promote the growth of polarized cells and support secretion and absorption in a way that closely mirrors natural metabolic processes. This creates a more physiologically relevant environment, making permeable supports an effective solution for cultivating complex cell types.
This product is manufactured by NEST® and sold through ABMIUM without relabelling.
ABMIUM supports global orders. Availability, shipping requirements and applicable import arrangements are confirmed before fulfilment where required.
Yes. Send your target, sample, application and experimental conditions through ABMIUM MATCH or technical support.
Unless the listing expressly states otherwise, ABMIUM products are supplied for research use only and are not for diagnostic or therapeutic use.
