Immunofluorescence (IF) is a powerful technique used to detect and visualize the presence, distribution, and localization of specific biomarkers within cells or tissue sections. By using antigen–antibody interactions, IF allows direct observation of proteins within their native cellular context. This makes it especially valuable for studying cellular architecture, protein expression patterns, and biological mechanisms in both basic and applied research.
IF is based on the specific binding between an antigen and a corresponding antibody. Detection can be achieved using two main approaches:
Indirect method: A primary antibody binds to the antigen, followed by a fluorophore-conjugated secondary antibody that binds to the primary antibody, amplifying the signal.
Direct method: A labelled primary antibody binds directly to the antigen, reducing steps but offering lower signal amplification.
Note: Some of the steps in this protocol require optimization depending on the sample type and antibody being used.
Fluorescent detection allows for the detection of multiple target antigens in the same sample at the same time. Care must be taken to ensure that fluorophores used have non-overlapping emission spectra.
Materials Required
- Cells grown on coverslips or tissue sections
- Glass slides
- Coverslips
- Slide holders and staining racks
- Coplin jars
- Humidified chamber (light-protected)
- Pipettes and tips
- Orbital shaker
- Forceps
- Fluorescence microscope
Controls
- No primary antibody control (secondary only)
- Isotype control
- Positive control sample
- Negative control sample
Reagents Required
Phosphate-buffered saline (PBS)
Fixative (e.g., 4% paraformaldehyde)
Permeabilization buffer (e.g., Triton X-100 in PBS)
Blocking solution( 5% BSA or 5–10% normal serum in PBS with 0.1% Tween-20)
Primary antibody
Fluorophore-conjugated secondary antibody (if indirect method)
Fluorophore-conjugated primary antibody (for direct method)
Nuclear counterstains (e.g., DAPI)
Mounting medium (antifade recommended)
Cells or tissue sections, indirect method
- Indirect is the most used immunofluorescence method. It provides greater signal amplification when the antigen is of low abundance, however there is potential for cross reactivity from the secondary antibody.

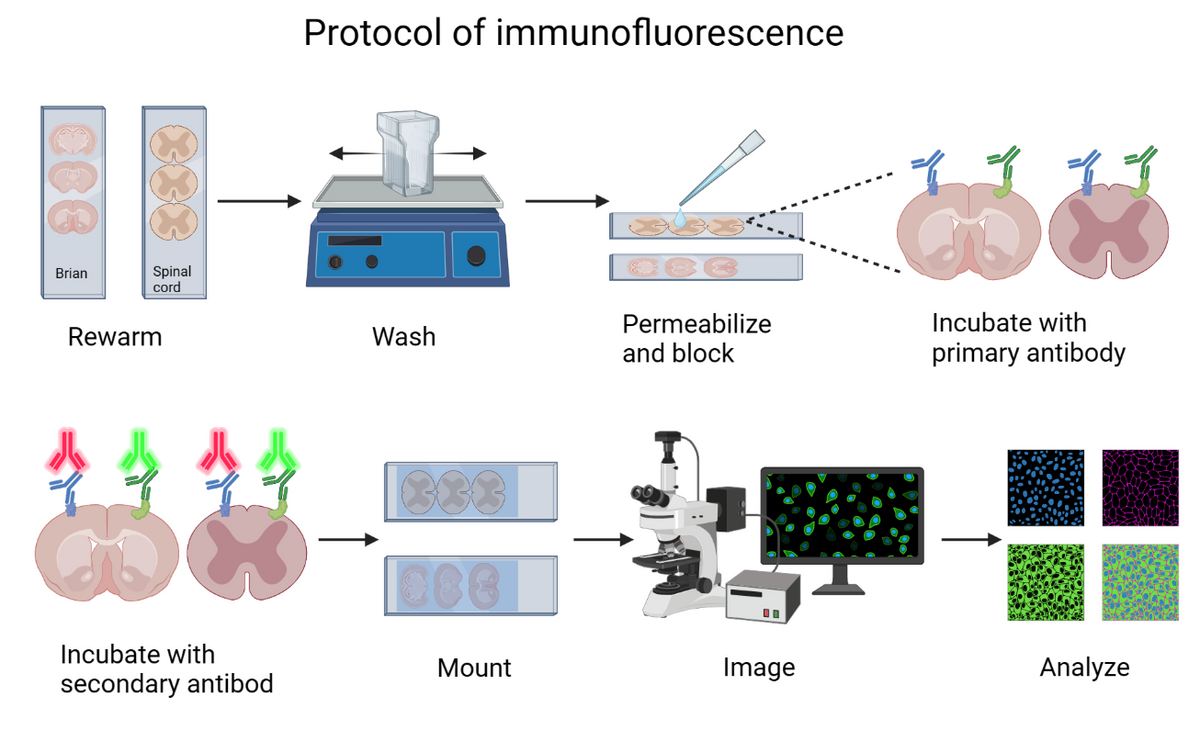

- Seed cells onto coverslips or prepare tissue sections and mount onto slides. Place samples in suitable holders.
- Wash samples in PBS (2 x 5 min each) using gentle agitation.
- Fix samples using freshly prepared 4% paraformaldehyde for 10-15 min at room temperature.
- Wash samples in PBS (3 x 5 min each).
- Permeabilize samples using a permeabilization buffer for 10 min at room temperature.
- Note: Permeabilization is required for intracellular targets but may be omitted for membrane proteins.
- Wash samples in PBS (3 x 5 min each).
- Cover the sample with a blocking reagent for 1 hr at room temperature. Cover and place in a humidified, light protected chamber.
- Uncover and wash the sample in PBS using gentle agitation, changing the wash solution 2 more times for a total of 3 washes (5 min/wash).
- Dilute the primary antibody in blocking reagent according to the manufacturer’s recommended dilution. Overlay the primary antibody solution on the sample and cover. Incubate in a humidified, light protected chamber overnight at 4°C.
- Gently wash the sample 3 times in PBS (5 min/wash) as described above.
- Dilute the fluorophore-conjugated secondary antibody in blocking reagent and protect from light. Overlay the secondary antibody solution on the sample and cover. Incubate in a humidified, light-protected chamber for 1 hr at room temperature. Do not allow samples to dry during the staining procedure.
- Gently wash the sample 3 times in PBS (5 min/wash) as described above.
- Optional: Nuclei can be counterstained using DAPI. Ensure that the selected counterstain does not overlap with the emission spectrum of the fluorophores used.
- Mount and cover slip the sample using an antifade mounting medium. Seal the edge of the coverslip if required.
- Allow slides to dry for 30-60 min before viewing on a fluorescence microscope.
- Samples can be stored at 4°C protected from light if needed.
Cells or tissue sections, direct method
- Direct detection is less common than indirect but has its own benefits. The benefits of direct detection include shorter staining times and reduced risk of cross-reactivity.
- Seed cells or prepare tissue sections and mount onto slides.
- Wash samples in PBS (2 x 5 min each).
- Fix samples as described above.
- Wash samples in PBS (3 x 5 min each).
- Permeabilize samples if required.
- Wash samples in PBS (3 x 5 min each).
- Cover the sample with blocking reagent for 1 hr at room temperature in a humidified chamber.
- Wash samples 3 times in PBS (5 min each).
- Dilute the fluorophore-conjugated primary antibody in blocking reagent according to the manufacturer’s recommendation.
- Overlay the antibody solution on the sample and cover. Incubate in a humidified, light-protected chamber overnight at 4°C or for 1-2 hr at room temperature.
- Wash samples 3 times in PBS (5 min each).
- Optional: Counterstain nuclei.
- Mount and coverslip the sample. Seal if necessary.
- Allow slides to dry before imaging.
- Store samples at 4°C protected from light if required.
Limitations:
- Each antibody and sample type behaves differently, requiring optimization of fixation, permeabilization, and antibody concentration.
- Non-specific binding may result in background fluorescence and complicate interpretation.
- Fluorescent signals can diminish over time due to photobleaching.
- Fixation conditions may alter antigen structure or accessibility.
- IF mainly provides qualitative or semi-quantitative data based on fluorescence intensity.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Weak/no signal | Low antibody affinity, poor fixation, insufficient permeabilization | Optimize antibody dilution, fixation method, and permeabilization conditions |
| High background | Non-specific binding, insufficient blocking | Increase blocking time or use a different blocking reagent |
| Uneven staining | Sample drying, poor reagent distribution | Ensure samples remain hydrated and reagents are evenly applied |
| Cross-reactivity | Secondary antibody binding non-specifically | Use species-specific antibodies or switch to direct method |
| Photobleaching | Prolonged light exposure | Minimize light exposure and use antifade mounting media |
| No nuclear staining | DAPI or counterstain omitted or degraded | Ensure correct counterstain concentration and incubation time |
| Excessive fluorescence signal | Antibody concentration too high | Reduce primary or secondary antibody concentration |
| Signal in negative control | Non-specific antibody binding | Include proper controls and optimize blocking conditions |
Closing Statement:
Successful immunofluorescence analysis relies on preserving cellular and tissue integrity through appropriate fixation, permeabilization, and blocking conditions, as well as the use of highly specific primary and secondary antibodies to achieve accurate target localization. Proper optimization of antibody concentrations, incubation times, and imaging settings is essential for minimizing background fluorescence and maximizing signal clarity. Although factors such as photobleaching, nonspecific staining, and autofluorescence may influence image quality and interpretation, the inclusion of suitable controls and standardized imaging parameters ensures reliable, reproducible, and interpretable visualization of protein expression and cellular localization in biological samples.
