Direct ELISA detects plate-bound antigen using a labelled primary antibody. Because the detection label is attached directly to the primary antibody, the workflow is shorter than indirect ELISA and avoids secondary-antibody cross-reactivity, but it provides less signal amplification and requires a suitably conjugated primary antibody.
This is a general colourimetric starting protocol. Antigen coating concentration, conjugated-antibody dilution, substrate incubation time and plate type must be optimised for the target and reagents.
Protocol at a glance
| Best suited to | Rapid detection of a plate-bound purified antigen when a suitable directly labelled primary antibody is available. |
|---|---|
| Detection format | Enzyme-conjugated primary antibody binds directly to the immobilised antigen. |
| Strength | Shortest ELISA format with no secondary-antibody cross-reactivity. |
| Trade-off | Usually lower signal amplification than indirect ELISA and every primary antibody requires direct conjugation. |
| Critical optimisation | Chessboard titration of coating antigen against conjugated antibody concentration. |
Equipment required
- High-binding 96-well ELISA plate
- Single- and multichannel pipettes
- Plate shaker where available
- Manual wash setup or plate washer
- Microplate reader compatible with the chosen substrate
Reagents
- Purified antigen or validated sample preparation
- Carbonate/bicarbonate or other validated coating buffer
- Blocking buffer such as 1% BSA in PBS or another validated blocker
- Wash buffer, commonly PBS with approximately 0.05% Tween-20
- Enzyme-conjugated primary antibody, commonly HRP- or AP-conjugated
- Compatible substrate such as TMB for HRP
- Compatible stop solution where required
- Positive, negative and blank controls

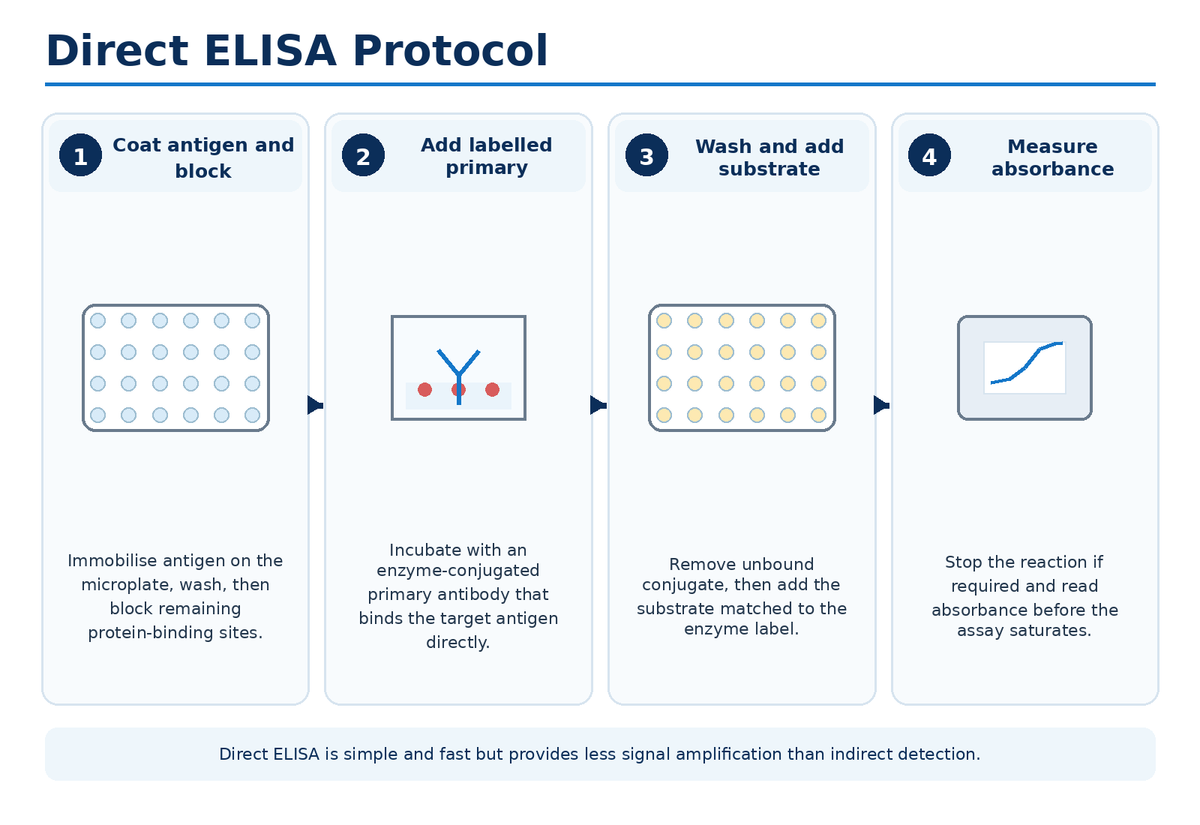

Direct ELISA procedure
- Prepare antigen. Dilute purified antigen or sample in coating buffer. For purified antigen, 1–10 µg/mL is a common optimisation range used in general ELISA protocols; the optimal concentration is assay-specific.
- Coat the plate. Add approximately 100 µL per well. Cover and incubate overnight at 4°C, or use another validated coating condition.
- Wash. Remove coating solution and wash the wells three times.
- Block. Add approximately 200 µL blocking buffer per well and incubate for about 1 hour at room temperature. Longer blocking may be used where validated.
- Wash three times.
- Add labelled primary antibody. Dilute the enzyme-conjugated primary antibody in the recommended diluent. Add approximately 100 µL per well and incubate for about 1–2 hours at room temperature. Use the antibody datasheet dilution where available.
- Wash thoroughly. Wash at least three times to remove unbound conjugate. Inadequate washing is a major source of background.
- Add substrate. Add the substrate volume recommended for the reagent, commonly 50–100 µL per well. For TMB/HRP, allow colour to develop while monitoring the plate and keeping development time consistent across wells.
- Stop the reaction if required. Add the substrate-specific stop solution consistently to all wells.
- Read the plate. For stopped TMB reactions, absorbance is commonly measured at 450 nm. Use the wavelength specified for the substrate system.
Controls
- Blank: no antigen, with the rest of the detection workflow present, to estimate background.
- Positive antigen control: known antigen that should produce signal.
- Negative/irrelevant antigen control: helps assess non-specific primary-antibody binding.
- Conjugate-only control: useful when investigating non-specific adsorption of the labelled primary antibody.
Data analysis
- Subtract appropriate blank/background values before comparing samples.
- If the assay is intended for quantification, include a standard curve spanning the expected dynamic range rather than interpreting raw OD as concentration.
- Run standards and samples in replicate.
- Avoid interpreting saturated wells; dilute the sample and repeat within the validated range.
Recommendations and warnings
- Use purified or well-characterised antigen where possible. Direct adsorption of complex samples can place many unrelated proteins on the plate and reduce analytical specificity.
- Optimise coating and antibody together. More antigen is not always better; over-coating can increase non-specific adsorption and compress the working range.
- Validate the conjugated antibody after labelling. Chemical conjugation can reduce affinity or increase aggregation, so the unconjugated antibody's performance cannot simply be assumed to carry over.
- Do not quantify outside the linear range. Saturated wells should be diluted and repeated rather than converted to concentration from an extrapolated curve.
- Control plate timing. Substrate development and stop-solution addition should be performed consistently across the plate because time itself becomes a source of OD variation.
Developing a direct ELISA by chessboard titration
Test a matrix of antigen coating concentrations against a dilution series of the enzyme-conjugated antibody. Choose a condition with strong positive signal, low blank signal and enough unsaturated dynamic range to distinguish expected sample differences. The highest OD condition is not necessarily the most useful assay condition.
Limitations
- No secondary-antibody amplification, so sensitivity may be lower than indirect ELISA.
- Each primary antibody must be directly labelled or otherwise directly detected.
- All proteins in complex samples can adsorb to the plate, which can increase background and reduce specificity.
- Conjugation can alter antibody affinity if not properly validated.
Troubleshooting
| Problem | Possible cause | What to try |
|---|---|---|
| Weak signal | Low antigen coating, low-affinity conjugated antibody or over-dilution | Titrate antigen and antibody, verify a positive control and confirm conjugate activity. |
| High background | Poor blocking, insufficient washing or excessive conjugated antibody | Optimise blocker, wash more thoroughly and reduce conjugated-antibody concentration. |
| High well-to-well variation | Pipetting inconsistency, edge effects or unequal incubation time | Use calibrated multichannel pipettes, consistent timing and plate seals. |
| Saturated signal | Too much antigen or conjugate, or excessive substrate development | Dilute antigen/sample or antibody and shorten substrate development. |
| Low specificity | Non-specific binding to adsorbed sample proteins | Use purified antigen where possible or consider a sandwich format for complex matrices. |
Frequently asked questions
When should I choose direct ELISA instead of indirect ELISA?
Choose direct ELISA when speed and simplicity are important and you already have a validated enzyme-conjugated primary antibody. Indirect ELISA is often more flexible and sensitive because a labelled secondary antibody provides signal amplification.
How much antigen should I coat?
There is no universal concentration. A low-microgram-per-millilitre range is a common starting region for purified proteins, but the correct concentration should be established by titration for the antigen and plate chemistry.
Can direct ELISA quantify antigen in serum or plasma?
It can be difficult because many proteins compete for adsorption to the plate. Sandwich ELISA is generally better suited to quantitative antigen measurement in complex matrices.
Why is my blank high?
Common causes include inadequate blocking, excessive conjugated antibody, insufficient washing, contaminated substrate or non-specific adsorption of the conjugate to the plate.
Related ABMIUM protocols
References and primary methods
- Engvall E, Perlmann P. Enzyme-linked immunosorbent assay (ELISA). Quantitative assay of immunoglobulin G. Immunochemistry. 1971;8:871–874. PMID: 5135623.
- Direct ELISA. Methods Mol Biol. 2015. PMID: 26160564.
- Butler JE et al. The enzyme-linked immunosorbent assay (ELISA): a measure of antibody concentration or affinity. Immunochemistry. 1978. PMID: 344194.
