ABMIUM laboratory protocol
A complete western blot protocol covering sample preparation, electrophoresis, membrane transfer, blocking, antibody incubation, detection, analysis and troubleshooting.
Application overview | Download linked PDF | Browse western blot antibodies | Ask technical support
Western blotting, also referred to as immunoblotting, is a widely used laboratory technique for detecting and analysing specific proteins within complex biological samples. The method relies on the use of antibodies to identify a target protein after separation by gel electrophoresis. In addition to identifying proteins, western blotting allows evaluation of protein expression levels, molecular weight, and post-translational modifications.
This protocol describes the complete experimental workflow, beginning with sample lysis and continuing through electrophoretic separation, membrane transfer, antibody probing, and signal detection using either chemiluminescent or fluorescent imaging systems. Proteins are first separated according to molecular size using SDS-PAGE, transferred onto a membrane support, and then detected using antibodies specific to the protein of interest.
The procedure integrates protein separation with immunodetection, enabling analysis of protein abundance and structural variants. Steps are optimized to minimize background signal and maximize detection sensitivity. The protocol includes guidelines for sample preparation, electrophoresis, membrane transfer, blocking, antibody incubation, imaging, and downstream data analysis.
This workflow can be applied to proteins extracted from cell culture samples or tissue lysates and is compatible with several detection platforms.

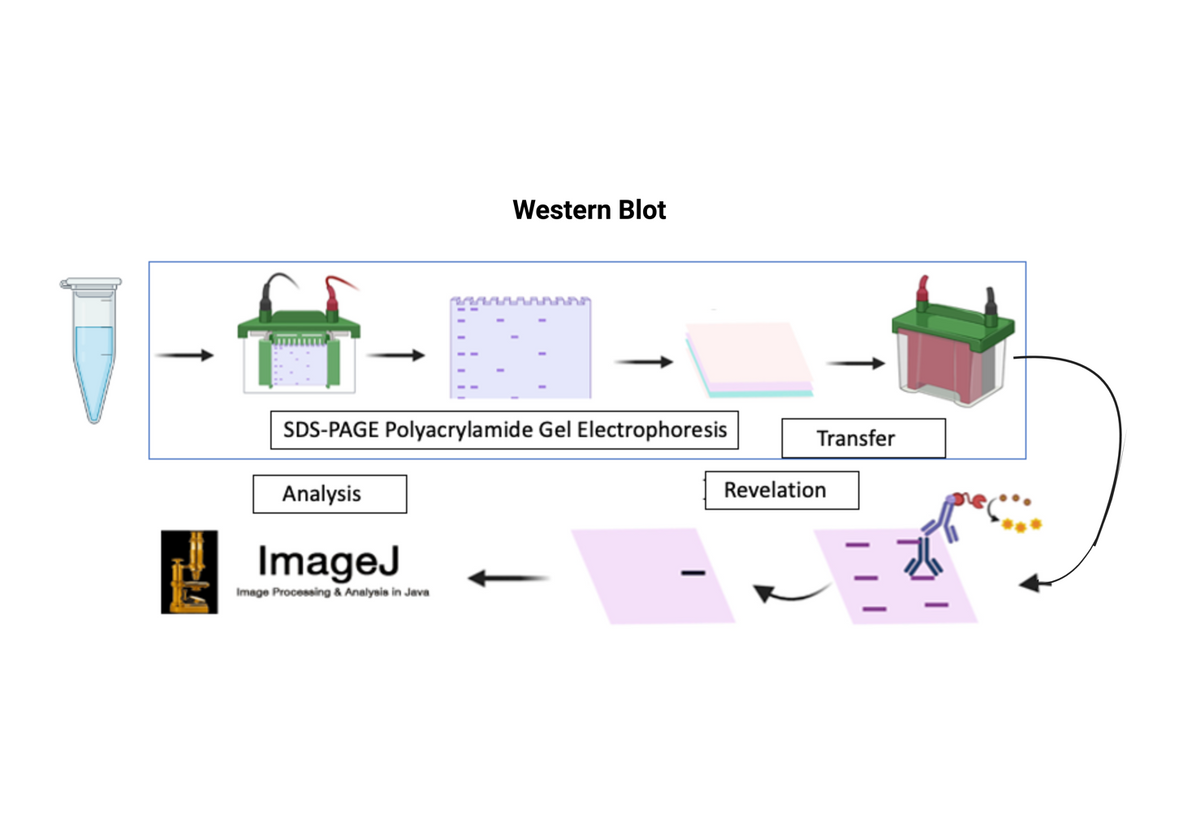

Overview of Western Blot procedure (Created with BioRender)
Equipment and Reagents required
Sample
Lysis buffer
PBS
Protease inhibitor cocktail
Phosphatase inhibitor cocktail
Concentrated loading buffer
Dithiothreitol (DTT)
Bradford assay Kit
SDS-PAGE gel
Transfer apparatus
Transfer buffer
TBST wash buffer
Membrane (nitrocellulose or PVDF)
Methanol (for PVDF activation)
Blocking buffer
Primary antibody
Antibody-stained membrane
70% ethanol
Lint-free cloth
Silicon mat
Filter paper
Imaging system
Stripping buffer
ECL detection reagent
PROCEDURE
Prepare the lysis buffer by thawing it on ice, then add protease inhibitor cocktail and phosphatase inhibitors according to the manufacturer’s instructions, mix gently, and keep the buffer on ice until use.
Wash the cells by aspirating the culture medium, adding cold PBS to cover the cells, gently swirling the plate, and removing the PBS, then repeat the wash once more to remove residual media proteins.
Harvest the cells by adding PBS, detaching them using a cell scraper, and transferring the cell suspension into a pre-chilled centrifuge tube.
Centrifuge the cells at 100 - 500 × g for 5 minutes at 4°C, ensuring the tubes are balanced, then carefully discard the supernatant without disturbing the cell pellet.
Wash the cell pellet by resuspending it in PBS, centrifuging again under the same conditions, and discarding the supernatant.
Lyse the cells by adding approximately 1 mL of ice-cold lysis buffer per 1 × 10⁷ cells, gently pipetting to resuspend the pellet, and incubating the suspension on ice for 10 minutes with occasional gentle mixing.
Sonicate the lysate by placing the tube on ice and applying short pulses of 3 - 5 seconds with pauses in between to prevent overheating, repeating this cycle several times to ensure complete cell disruption.
Clarify the lysate by centrifuging at 14,000 - 17,000 × g for 20 minutes at 4°C, then carefully transferring the clear supernatant to a new pre-chilled tube while avoiding the pellet.
Quantify the protein concentration by performing a Bradford or BCA assay according to the manufacturer’s protocol, preparing a standard curve using BSA standards, measuring absorbance, and calculating the concentration of each sample.
Normalize the protein concentration by diluting samples with a lysis buffer so that all samples have the same final protein concentration for equal loading.
Aliquot the lysates into separate tubes to avoid repeated freeze-thaw cycles, ensuring that sufficient space is left in each tube for the addition of a loading buffer.
Add SDS loading buffer containing DTT or β-mercaptoethanol to each sample to achieve a final 1x concentration and mix thoroughly.
Denature the proteins by heating the samples at 95 - 100°C for 5 minutes, then briefly centrifuge to collect condensation and place the samples on ice.
Select an appropriate SDS-PAGE gel percentage based on the molecular weight of the target protein, with lower percentages for larger proteins and higher percentages for smaller proteins.
Set up the electrophoresis apparatus by inserting the gel into the tank and filling it with a running buffer, ensuring there are no leaks and the electrodes are correctly positioned.
Load the samples by pipetting equal amounts of protein into each well along with a molecular weight ladder, taking care not to damage the wells or introduce bubbles.
Run the gel by applying 80 V through the stacking gel followed by 100 - 120 V through the resolving gel until the dye front reaches the bottom.
Prepare the membrane by activating PVDF in methanol for one minute if used, or equilibrating a nitrocellulose membrane in a transfer buffer.
Assemble the transfer sandwich by layering sponge, filter paper, gel, membrane, filter paper, and sponge in the correct order, ensuring all air bubbles are removed.
Transfer the proteins from the gel to the membrane using wet transfer at 100 V for 60 - 90 minutes at 4°C.
Block the membrane by incubating it in 5% milk or BSA in TBST for 1 hour at room temperature or overnight at 4°C with gentle rocking.
Incubate the membrane with the primary antibody diluted in a blocking buffer either overnight at 4°C or for 1 - 2 hours at room temperature.
Wash the membrane three times for 5 minutes each with TBST to remove the unbound primary antibody.
Incubate the membrane with an appropriate HRP- or fluorescent-conjugated secondary antibody diluted in a blocking buffer for 1 hour at room temperature with gentle rocking.
Wash the membrane again three times for 5 minutes each with TBST to remove excess secondary antibodies.
Detect the protein by adding ECL substrate for chemiluminescent detection and imaging immediately, or by placing the membrane on a fluorescence scanner with TBST to keep it hydrated and scanning using appropriate settings.
Analyse the results by comparing the detected bands to the molecular weight ladder, confirming the expected size of the target protein, and validating specificity using appropriate controls such as a loading control and negative samples.
Limitations
Despite its usefulness, western blotting has several limitations.
The procedure is relatively time-intensive and requires careful optimization of experimental conditions, including sample preparation, antibody concentration, and transfer efficiency (whether semi-dry or submarine method).
Sensitivity can be influenced by antibody quality, blocking efficiency, and transfer conditions.
Quantitative accuracy is limited, as the technique typically provides semi-quantitative rather than absolute measurements.
Detection of low-abundance proteins may require signal amplification or enrichment strategies.
The technique analyses denatured proteins; it does not provide structural or spatial information like immunohistochemistry.
Troubleshooting
Common technical problems encountered in western blotting:
Note: Ensuring consistent sample preparation, using validated reagents, and maintaining clean equipment are critical for producing reliable and reproducible results.
Closing Statement:
Western blotting remains an essential analytical method for confirming the presence and relative abundance of proteins in biological samples. The technique relies on efficient protein extraction, accurate electrophoretic separation, successful membrane transfer, and specific antibody interactions to generate clear and interpretable results. Its effectiveness in studying protein expression and validating molecular findings has made it a routine tool in biomedical and cellular research. However, obtaining reliable and reproducible data requires careful control of experimental conditions, appropriate normalization strategies, and optimization of detection parameters throughout the workflow.
Problem
Possible Cause
Solution
Weak signal
Low protein concentration
Inefficient protein transfer
Suboptimal antibody binding
Increase protein loading or concentrate the sample
Optimize transfer time/voltage, check transfer setup, ensure proper membrane activation
Optimize antibody concentration and incubation time; verify antibody quality
High background
Inadequate blocking
Excessive antibody concentration
Insufficient washing
Use appropriate blocking buffer (BSA or milk) and increase blocking time
Reduce primary and/or secondary antibody concentration
Increase number and duration of washes; ensure proper agitation
Distorted/smeared bands
Overloading protein samples
Uneven gel polymerization
Incorrect electrophoresis conditions
Reduce protein amount and load consistent volumes
Prepare gels carefully or use pre-cast gels
Optimize voltage and running time; use fresh running buffer
Products and support for this protocol
Browse western blot antibodies. Confirm application validation, species reactivity, sample type and detection requirements before selection.
Contact ABMIUM scientific support for product selection and troubleshooting.
For research use only. This protocol is general guidance and does not replace product-specific instructions, institutional safety procedures or local risk assessments.
