ABM-24164
Anti-PDE6 beta/PDE6B Antibody Picoband® (monoclonal, 8I2D7
ABMIUM Verified™|Collaborator Tested|Boster Bio
Primary Antibody supplied by Boster Bio Read more ›
Related formats
Zoom
Product Description
Boster Bio Anti-PDE6 beta/PDE6B Antibody Picoband® (monoclonal, 8I2D7) catalog # M02659-1. Tested in Flow Cytometry, IF, IHC, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Photon absorption triggers a signaling cascade in rod photoreceptors that activates cGMP phosphodiesterase (PDE), resulting in the rapid hydrolysis of cGMP, closure of cGMP-gated cation channels, and hyperpolarization of the cell. PDE is a peripheral membrane heterotrimeric enzyme made up of alpha, beta, and gamma subunits. This gene encodes the beta subunit. Mutations in this gene result in retinitis pigmentosa and autosomal dominant congenital stationary night blindness. Multiple transcript variants encoding different isoforms have been found for this gene.
Product information
| Supplier | Boster Bio |
|---|---|
| ABMIUM evidence status | ABMIUM Verified™ collaborator-tested data |
| Catalogue reference | M02659-1 |
| Product category | Primary Antibodies |
| Reactive species | Human, Mouse, Rat |
| Tested applications | ELISA, Flow Cytometry, IF/ICC, IHC, IHC-P, WB |
| Available conjugations | Unconjugated, Biotin, Cy3, Fluoro488, Fluoro550, Fluoro594, FITC, HRP, APC, PE, Fluoro647 |
| Gene name | PDE6B |
| Protein name | Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta |
| Immunogen | E.coli-derived human PDE6 beta/PDE6B recombinant protein (Position: K25-Q237). |
| Host | Mouse |
| Clonality | Monoclonal |
| Isotype | Mouse IgG2a |
| Purification | Immunogen affinity purified. |
| Storage | At -20℃ for one year from date of receipt. After reconstitution, at 4℃ for one month. It can also be aliquotted and stored frozen at -20℃ for six months. Avoid repeated freezing and thawing. |
| UniProt | P35913 |
| NCBI Gene ID | 5158 |
Available variants
| Conjugation | Size |
|---|---|
| Unconjugated | 100 μg/vial |
| Biotin | 100 μg/vial |
| Cy3 | 100 μg/vial |
| Fluoro488 | 100 μg/vial |
| Fluoro550 | 100 μg/vial |
| Fluoro594 | 100 μg/vial |
| FITC | 100 μg/vial |
| HRP | 100 μg/vial |
| APC | 100 μg/vial |
| PE | 100 μg/vial |
| Fluoro647 | 100 μg/vial |
Key Facts
Product type
Primary Antibody›
Target: Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta
| Target | Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta |
| Also known as | CSNB3; GMP PDE beta; PDE6B; PDEB; rd1; RP40 |
| Concentration | Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml. |
| Species reactivity | Human,Mouse,Rat |

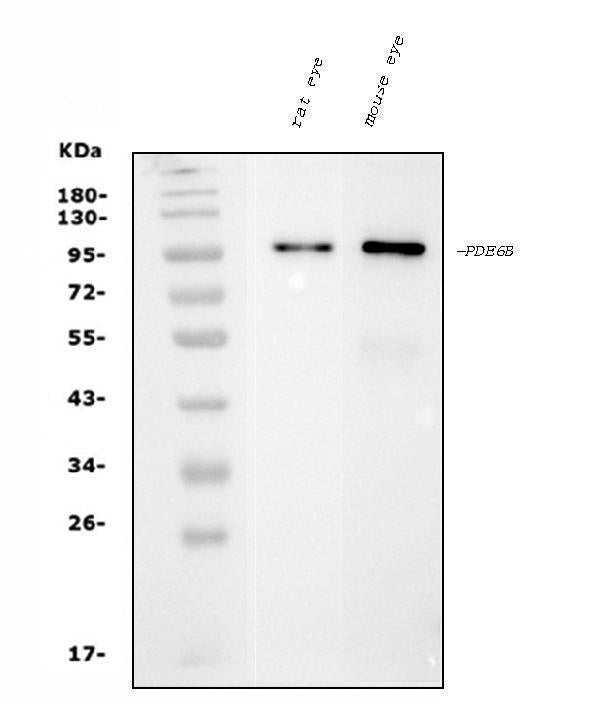

| Observed band | 98 kDa |
| Form / buffer | Lyophilized |
| Shelf life | At -20℃ for one year from date of receipt. After reconstitution, at 4℃ for one month. It can also be aliquotted and stored frozen at -20℃ for six months. Avoid repeated freezing and thawing. |
| Host species | Mouse |
| Clonality | Monoclonal |
| Clone number | Clone: 8I2D7 |
| Isotype | Mouse IgG2a |
| Conjugation | Unconjugated|Biotin|Cy3|Fluoro488|Fluoro550|Fluoro594|FITC|HRP|APC|PE|Fluoro647 |
| Non-cross-reactive with | No cross-reactivity with other proteins. |
| Tested applications |
ELISAFlow CytometryIF/ICCIHCIHC-PWB |
| Dilution range | Western blot, 0.25-0.5 μg/ml, Mouse, Rat Immunohistochemistry(Paraffin-embedded Section), 2-5 μg/ml, Rat Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human Flow Cytometry (Fixed), 1-3 μg/1x6 cells, Human |
| Immunogen | E.coli-derived human PDE6 beta/PDE6B recombinant protein (Position: K25-Q237). |
| Purification | Immunogen affinity purified. |
Why researchers trust ABMIUM
2,000+
Researchers trust us
50,000+
Citations
ISO 9001
Certified Collaborators
Reactivity & Application Validation
3 speciess| Species | WB | IHC | IHC-P | IHC-F | IF/ICC | FLOW CYTOMETRY | ELISA | IP |
|---|---|---|---|---|---|---|---|---|
| Human | ||||||||
| Mouse | ||||||||
| Rat |
Specifications
Target
Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta
Also known as
CSNB3; GMP PDE beta; PDE6B; PDEB; rd1; RP40
Concentration
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Form / buffer
Lyophilized
Host species
Mouse
Clonality
Monoclonal
Clone number
Clone: 8I2D7
Isotype
Mouse IgG2a
Conjugation
Unconjugated|Biotin|Cy3|Fluoro488|Fluoro550|Fluoro594|FITC|HRP|APC|PE|Fluoro647
Species reactivity
Human,Mouse,Rat
Tested applications
ELISAFlow CytometryIF/ICCIHCIHC-PWB
Immunogen
E.coli-derived human PDE6 beta/PDE6B recombinant protein (Position: K25-Q237).
Observed band
98 kDa
Dilution range
Western blot, 0.25-0.5 μg/ml, Mouse, Rat
Immunohistochemistry(Paraffin-embedded Section), 2-5 μg/ml, Rat
Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 μg/1x6 cells, Human
Immunohistochemistry(Paraffin-embedded Section), 2-5 μg/ml, Rat
Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 μg/1x6 cells, Human
Purification
Immunogen affinity purified.
Storage & Stability
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Shipped at
Ambient or cold-chain dependent on product format
Short-term storage
At -20℃ for one year from date of receipt. After reconstitution, at 4℃ for one month. It can also be aliquotted and stored frozen at -20℃ for six months. Avoid repeated freezing and thawing.
Long-term storage
At -20℃ for one year from date of receipt. After reconstitution, at 4℃ for one month. It can also be aliquotted and stored frozen at -20℃ for six months. Avoid repeated freezing and thawing.
Storage conditions
At -20℃ for one year from date of receipt. After reconstitution, at 4℃ for one month. It can also be aliquotted and stored frozen at -20℃ for six months. Avoid repeated freezing and thawing.
Storage buffer
Each vial contains 4 mg Trehalose, 0.9 mg NaCl and 0.2 mg Na2HPO4.
Shelf life
At -20℃ for one year from date of receipt. After reconstitution, at 4℃ for one month. It can also be aliquotted and stored frozen at -20℃ for six months. Avoid repeated freezing and thawing.
Compliance & Certifications
RUO
For Research Use Only
Not intended for diagnostic or therapeutic use.
